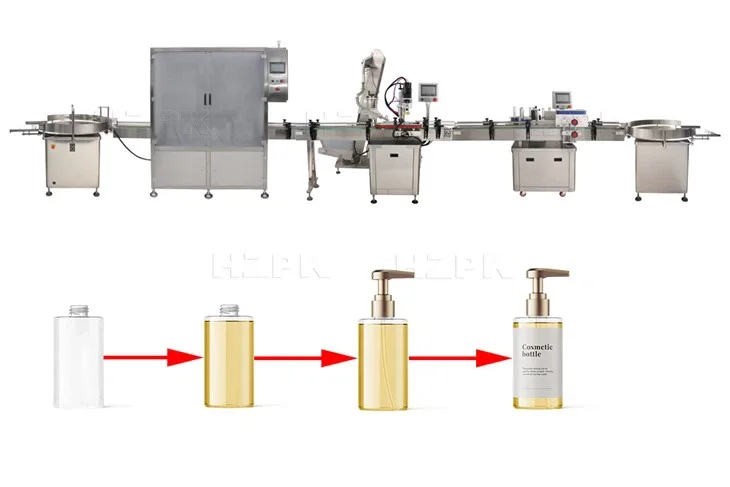

HZPK Automatic Paste Bottle Filling Production Line
The HZPK fully automatic filling production line is designed for filling and packaging various paste and liquid products. The automatic 8-head filling machine utilizes a servo motor to drive the piston for filling, delivering exceptional accuracy with a precision of ±0.5%. The automatic capping machine features a customizable cap feeding system, adaptable to different cap types. Equipped with a dual-head capping mechanism, it significantly enhances work efficiency. The automatic round bottle labeling machine is designed for self-adhesive labeling on round bottles, achieving speeds of up to 50 bottles per minute. It is widely used in industries such as food, cosmetics, pharmaceuticals, and chemicals, providing a reliable and efficient filling solution.
Products Description
The HZPK fully automatic filling production line is designed for filling and packaging various paste and liquid products.
The automatic 8-head filling machine utilizes a servo motor to drive the piston for filling, delivering exceptional accuracy with a precision of ±0.5%.
The automatic capping machine features a customizable cap feeding system, adaptable to different cap types. Equipped with a dual-head capping mechanism, it significantly enhances work efficiency.
The automatic round bottle labeling machine is designed for self-adhesive labeling on round bottles, achieving speeds of up to 50 bottles per minute.
It is widely used in industries such as food, cosmetics, pharmaceuticals, and chemicals, providing a reliable and efficient filling solution.
|
Mode
|
Production Line
|
|
Speed
|
1500-2000BPH
|
|
Bottle type
|
Customized
|
|
Cap type
|
Customized
|
|
Label type
|
Customized
|
Details
Rotary Bottle Unscrambler
Bottles are arranged in order and fed onto the conveyor belt through rotation and guide plates.
Rotary Bottle Collecting Machine
The machine gathers packaged bottles for the next stage of outer packaging.
Automatic 8-Head Filling Machine
It is suitable for filling both paste and liquid products.
Corvus Headquarters Complex
Cowers Commercial Cleaning Robot Landing Case:China Mobile Software Park
8 filling Nozzles
It allows simultaneous filling of 8 bottles to enhance efficiency.
It is equipped with an automatic lifting system and an anti-drip function.
Servo Motor
The piston is driven by a servo motor to perform filling with a high accuracy of up to ±0.5%.
Automatic Capping Machine
The automatic capping machine features dual capping heads and is suitable for round-cap bottles, pump bottles, and dropper bottles.
automatic cap feeder
Fully automatic cap feeder with orientation detection and custom track for fast stable and efficient cap delivery
Three-Belt Conveyor
Each cap feeding and dual-head capping structure is equipped with a belt conveyor for bottle conveying and positioning. It is suitable for round, square, and oval bottles.
4-Wheel Capping Head
Can be used for screwing on round caps, pump caps, and dropper bottle caps. Customizable capping heads for metal caps, corks, and more.
Cap Foil Detection Structure
Detects whether there is an aluminum foil inside the transparent bottle cap and screens out bottles without foil.
Using high-precision sensors, it can easily detect whether there is aluminum foil inside the transparent bottle cap.
Automatic Self-Adhesive Labeling Machine
Used for applying self-adhesive labels, suitable for semi-circle labeling.
Bottle Dividing Roller
The bottle dividing roller can increase the distance between bottles, preventing label overlap.
Labeling System
Roll-to-roll labeling system with high-precision sensors, achieving label accuracy of ±1mm.
High-Elasticity Belt
Uses a high-elasticity belt to smooth the labels, reducing wrinkles and bubbles.
Automatic Induction Sealing Machine
Seals the cap foil by heating it with electromagnetic induction.
Induction Head
The induction head has adjustable height and power, and is also equipped with an emergency stop switch.
