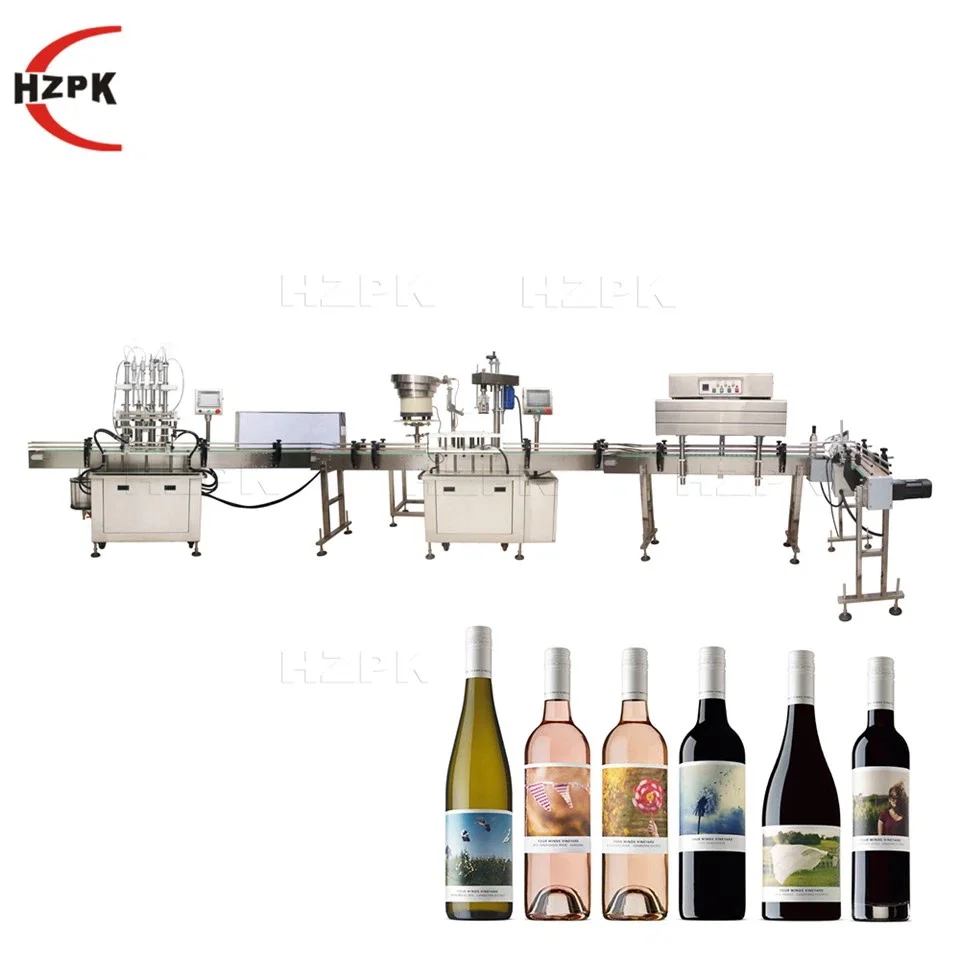

Automatic Glass Bottle Filling Machine Line
Fully Automatic Glass Bottle Liquid Filling and Packaging Production Line, suitable for filling, capping, heat-shrink film sealing, and coding of products such as alcoholic beverages and condiments.
Products Description
Fully Automatic Glass Bottle Liquid Filling and Packaging Production Line, suitable for filling, capping, heat-shrink film sealing, and coding of products such as alcoholic beverages and condiments. Below are the detailed configurations and functional descriptions of the production line:
Composition of the Fully Automatic Glass Bottle Filling and Packaging Line
1. Fully Automatic 4-Head Piston Filling Machine
- Utilizes piston filling, suitable for liquids (e.g., water, oil, syrup, etc.).
- Number of filling heads: 4-head synchronous filling, high efficiency (capacity approximately 800–1,200 bottles/hour, depending on bottle type).
- Lifting filling system: The filling nozzle automatically adjusts to the bottle mouth height to prevent liquid splashing.
- Anti-drip design: Automatic liquid retraction after filling to avoid dripping and contamination of the bottle or conveyor belt.
- Compatible bottle sizes: 10ml–5,000ml (customizable).
2. Automatic Rotary Capping Machine
- Cap feeding method: Vibratory bowl for automatic cap alignment and feeding.
- Capping method: Metal lock cap head, customized according to the bottle, high sealing performance.
- Compatible cap types: Screw caps, press-on caps, tamper-evident caps, lug caps, etc.
3. Bottle Mouth Film Heat Shrink Machine
- Seals aluminum foil or PVC/POF heat-shrink film around the bottle mouth.
- Heating method: Hot air circulation with adjustable temperature.
- Applications: Alcoholic beverages, premium drinks, olive oil, and other products requiring sealed anti-counterfeiting.
4. Inkjet Printer
- Printing content: Production date, batch number, barcode, QR code, etc.
- Compatible materials: Glass bottles, labels, caps, etc.
Production Line Workflow
1. Empty bottle loading → 2. Automatic filling → 3. Automatic capping → 4. Heat-shrink film sealing → 5. Coding → 6. Finished product output
Optional Expansion Equipment
Automatic Labeling Machine: Applies product labels after filling (options include self-adhesive or paste labeling).
Details
4 Head Liquid Filling Machine
Utilizes piston filling, suitable for liquids
4-head synchronous filling, high efficiency (capacity approximately 800–1,200 bottles/hour, depending on bottle type).
Piston barrel
The barrel is made of 304 stainless steel, and the volume can be customized according to requirements.
Filling range 10-5000ml.
The machine features a PLC control system and touchscreen operation panel, ensuring stable performance and easy parameter adjustment.
Automatic Capping Machine
For automatic bottle capping and capping
Metal lock capping head
customized according to the bottle, high sealing performance.
Rotary type screw cap
Servo-driven turntable capping, with high stability and precision.
Vibratory plate feeder
Vibratory plate for automatic cap alignment and feeding.
shrink wrap machine
Seals aluminum foil or PVC/POF heat-shrink film around the bottle mouth.
Hot air circulation
Hot air circulation ensures even heating of the film, enhancing the shrink effect.
Inkjet printer
Printing content: Production date, batch number, barcode, QR code, etc.
Compatible materials: Glass bottles, labels, caps, etc.
