Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 1

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 2

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 3

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 4

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 5

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 6

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 7

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 8

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 9

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 10

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 11

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 12

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight

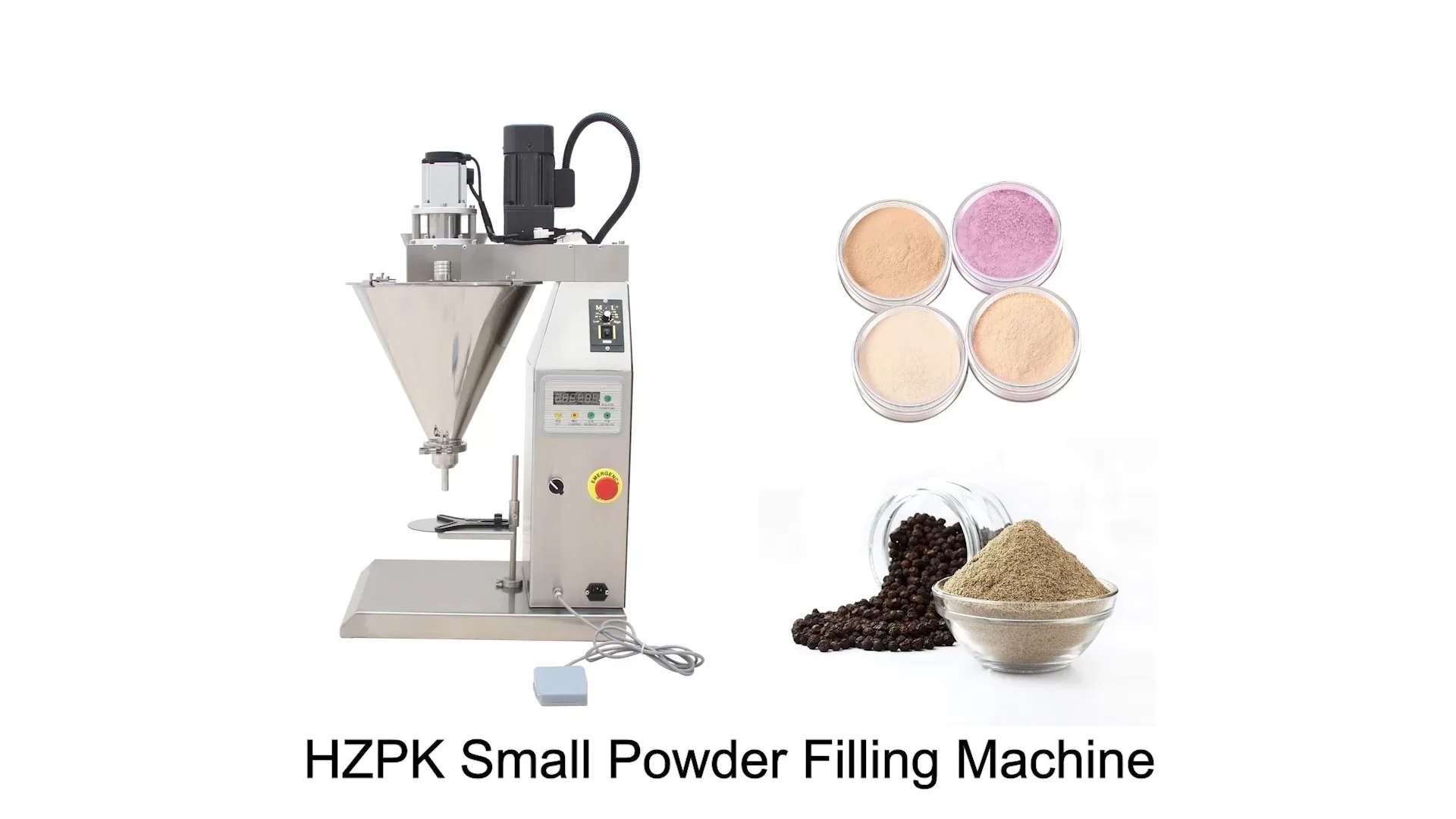

Informations: HZSF small powder filling machine is suitable for powder filling, such as additives, flour, condiments and other products. Feel free to contact us if any questions regarding our products you would like to know. Features: 1. Approximate speed 10-20bottles/min(depending on operator speed,product density,filling speed etc. 2. Easy to clean, maintain and operation 3. Hight adjustment, low repair cost, long services time 4. 2 different sizes nozzle for different filling volume 5. High repeat accuracy and low noise 6. All parts in contact with product are Food Grade 304SS(306SS customizable)

quantity:

Bottle height:

≤200mm(Customizable)

Optimal Filling range:

1-10g(Nozzle Dia:14mm)；10-30g(Nozzle Dia:23mm)

Filling Accuracy:

≤10g, ±0.2g; ≥10g, ±0.3g

Filling Speed:

10-20 bots/min

Hopper Size:

Informations:

HZSF small powder filling machine is suitable for powder filling, such as additives, flour, condiments and other products. Feel free to contact us if any questions regarding our products you would like to know.

Features:

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 13

1. Approximate speed 10-20bottles/min(depending on operator speed,product density,filling speed etc.

Moonpack HZSF Small Powder Can Screw Filling Machine With Weight 14

2. Easy to clean, maintain and operation

3. Hight adjustment, low repair cost, long services time

4. 2 different sizes nozzle for different filling volume

5. High repeat accuracy and low noise

Model	HZSF
Power	120W
Hopper	6L
Bottle volume	1-10g(Nozzle Dia:14mm)
Bottle volume	10-30g(Nozzle Dia:23mm)
Bottle length	≤200mm(Customizable)
Filling accuracy	≤10g ±0.2g
Filling accuracy	≥10g ±0.3g
Filling speed	10-20 bots/min

Filling nozzle

The filling nozzles are made of 304 stainless steel and are food-grade.

The nozzles come in two sizes for different filling ranges:

1. Outer diameter 14mm, inner diameter 9mm, suitable for 1-10g.

2. Outer diameter 23mm, inner diameter 17mm, suitable for 10-30g.

Control panel

The control panel is made with simple buttons, allowing easy setting of parameters such as filling volume and filling speed, with automatic counting functionality.

Motor

The machine is equipped with two motors: one for mixing the powder and the other for screw feeding, high precision.

Hopper

The hopper is made of 304 stainless steel, which is food-grade and wear-resistant.

If needed, 316 stainless steel hopper can be customized.
