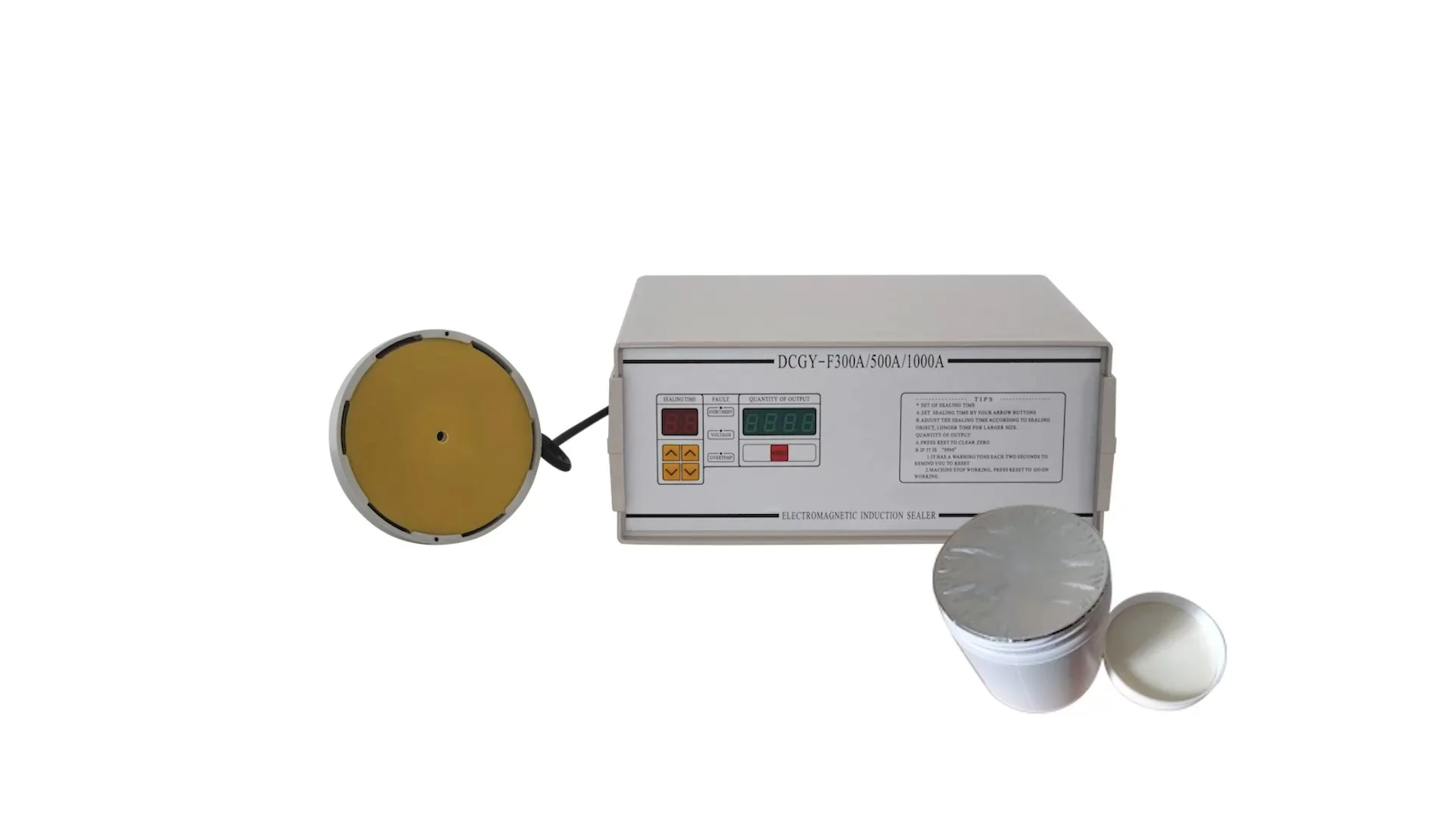

Moonpack DCGY-1000 Manual Round Cap Can Foil Induction Sealing Machine

Model DCGY is suitable for the sealing of flat cap with screw thread for cans in foodstuffs, cosmetics and light industry. Features: 1. The containers sealable can be made of PE, PP, PS, PET, ABS, glass, porcelain etc. but not metal. 2. Small size, light weight, easy operation, it is suitable for low-volume production and operation in labs. 3. Fast and efficient. The foil seals tightly without being affected by moisture, grease or powder contamination on sealing area. 4. Easy & simple to use. All functions are clearly labeled on the display panel, which is convenient to access. 5. Modular component design minimizes maintenance requirements.

quantity:

Temperature range:

10-400℃

Suitable Cap Diameter:

Ø70-130mm

Voltage power:

AC220V/50HZ-80HZ

Dimension:

260*345*165mm

Model DCGY is suitable for the sealing of flat cap with screw thread for cans in foodstuffs, cosmetics and light industry.

Features

Moonpack DCGY-1000 Manual Round Cap Can Foil Induction Sealing Machine 10

1. The containers sealable can be made of PE, PP, PS, PET, ABS, glass, porcelain etc. but not metal.

1 (20)

2. Small size, light weight, easy operation, it is suitable for low-volume production and operation in labs.

2 (17)

3. Fast and efficient. The foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.

3 (15)

4. Easy to use. All functions are clearly labeled on the display panel, which is convenient to access.

5 (15)

5. Modular component design minimizes maintenance requirements.

Technical Parameters

MODEL	DCGY-F200	DCGY-F300	DCGY-F500	DCGY-F1000
Power	AC220V/50HZ-80HZ
Input power	≥1200W
Out power	≦600W
Ambient temperature	10-400℃
Seal diameter	Ø20-80mm	Ø15-50mm	Ø20-90mm	Ø70-130mm
Seal type	handle type
size	280230115mm	260345165mm	260345165mm	260345165mm
Enclosure rating	IP20

Control Panel

Intelligent control panel, can adjust the sealing time, count the quantity, and easy to operate.

Electromagnetic Induction Head

Suitable for the sealing of flat cap with screw thread for glass cans and plastic Jars.

Cap diameter between 70mm and 130mm.
